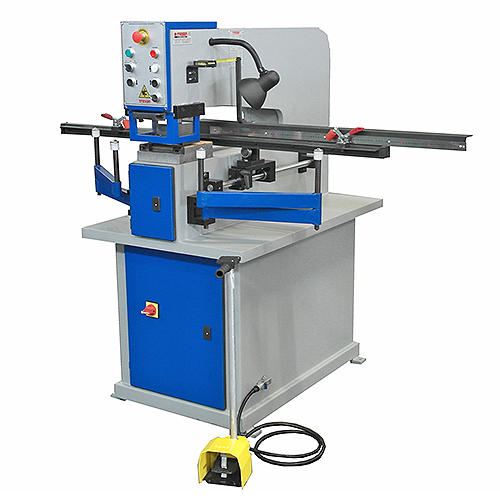

HYDRAULIC METAL PUNCHING PRESS

HYDRAULIC METAL PUNCHING PRESS

Product Code : FHP-500

Category : PRODUCTS
  • Capacity Table
  • Specifications
  • Video
TYPE UNIT FHP 500
Tonnage ton 10
Maximum pressure bar 200
Operating Stroke mm 40
Maximum stroke 50
Number of hit per minute 20
Motor power kW 1,5
Distance between punch and die mm 28
Max. rectangle die size mm <=> 92 x 92 x 2
Max. round die Ø 92 x 2
Oil used Shell Tellus 37
Weight ~kg 700

STANDARD EQUIPMENT

Capable of punching holes in the middle of sheets with 1000 mm width
Capacity of 92x92mm2 rectangular and Ø92mm circular with a maximum thickness of 2mm
500 mm throat depth
Practical motion in X and Y axis
Practical punch and die exchange
Feasible solution for sheet metal punching operations
Can be manufactured according to customer needs. More powerful and different constructions are possible.
