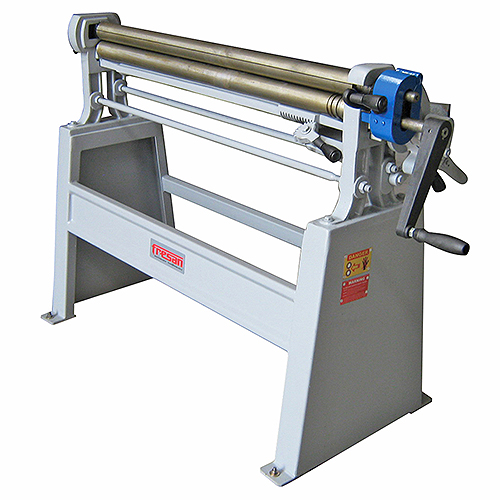

3 ROLLS MANUAL PLATE BENDING MACHINES

3 ROLLS MANUAL PLATE BENDING MACHINES

Product Code : FMS

Category : PRODUCTS
PRODUCT DATA REQUEST
  • Capacity Table
  • Specifications
  • Video
MODEL UNIT FMS 600X46 FMS 1050X46 FMS 1270X46 FMS 600X56 FMS 1050X56 FSM 1270X56
Working Length mm 600 1050 1250 600 1050 1250
Bending Capacity mm 1 0,8 0,6 1,2 1 0,8
Roll diameter mm 46 46 46 56 56 56
Min.Bending Ø 6 6 6 6 6 6
Motor Power kW Manuel Manuel Manuel Manuel Manuel Manuel
Length mm 950 1300 1570 940 1300 1570
Width mm 500 500 500 500 500 500
Height mm 500 500 500 500 500 500
Weight kg 90 120 150 110 150 180

STANDARD EQUIPMENT

Body is made of cast iron construction
Upper roll is opanable by side
Rolls are produced by special steel SAE 1050
Wire grooves at the end of the rolls

OPTIONAL EQUIPMENTS

Induction hardened rolls
